Kaposvár Arena

About the project

  • Year 2016 - 2017
  • Type of work General design of supporting structures, Detail design of reinforced concrete structures, Execution plans
  • Project management Arker Stúdió Kft.
  • Contractor ZÁÉV Építőipari Zrt., Fertődi Építő és Szolgáltató Zrt.
  • Investor Kaposvár Megyei Jogú Város Önkormányzata
  • Client Arker Stúdió Kft.
  • Location Kaposvár, Somogy, Hungary

About the project

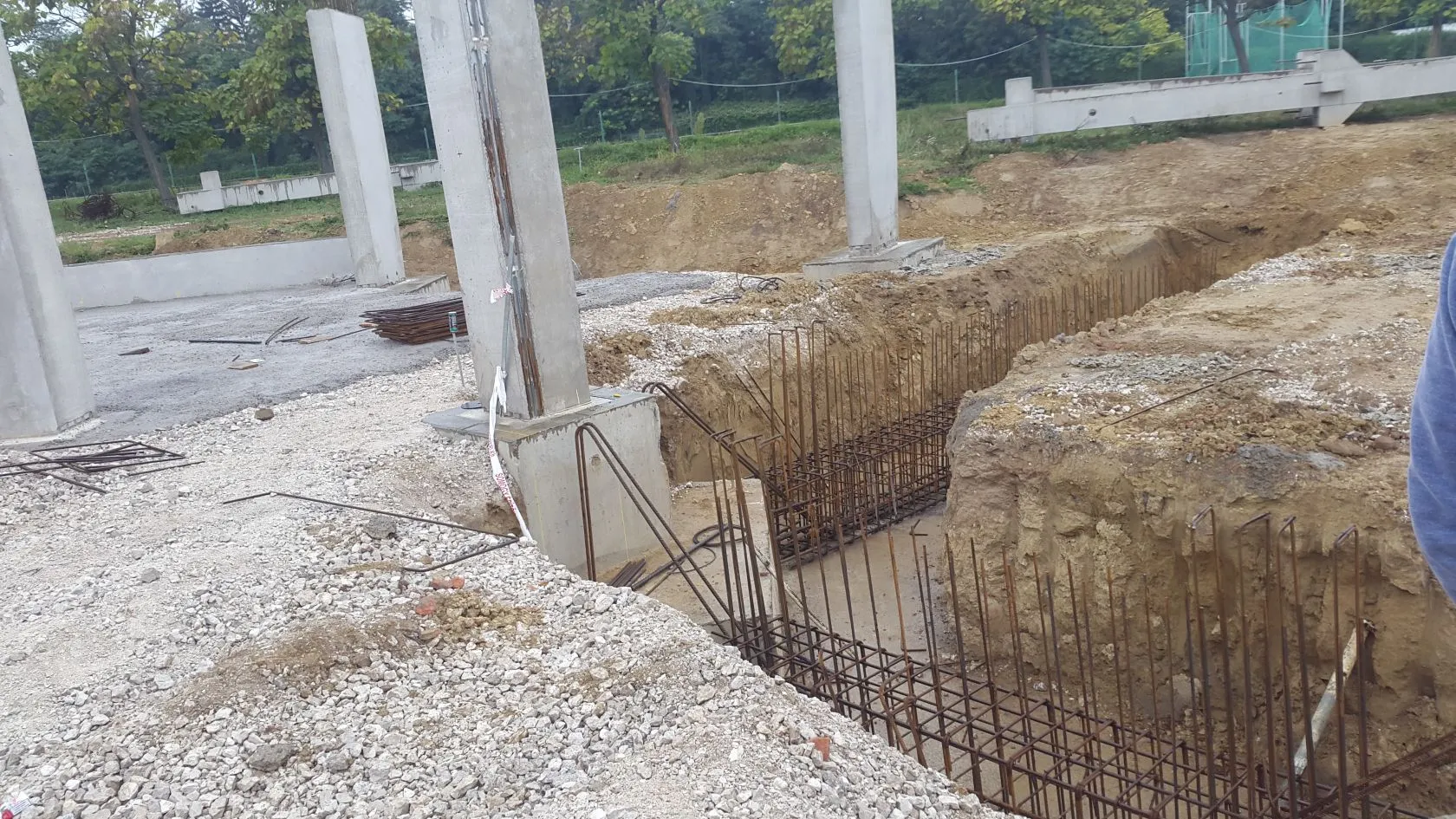

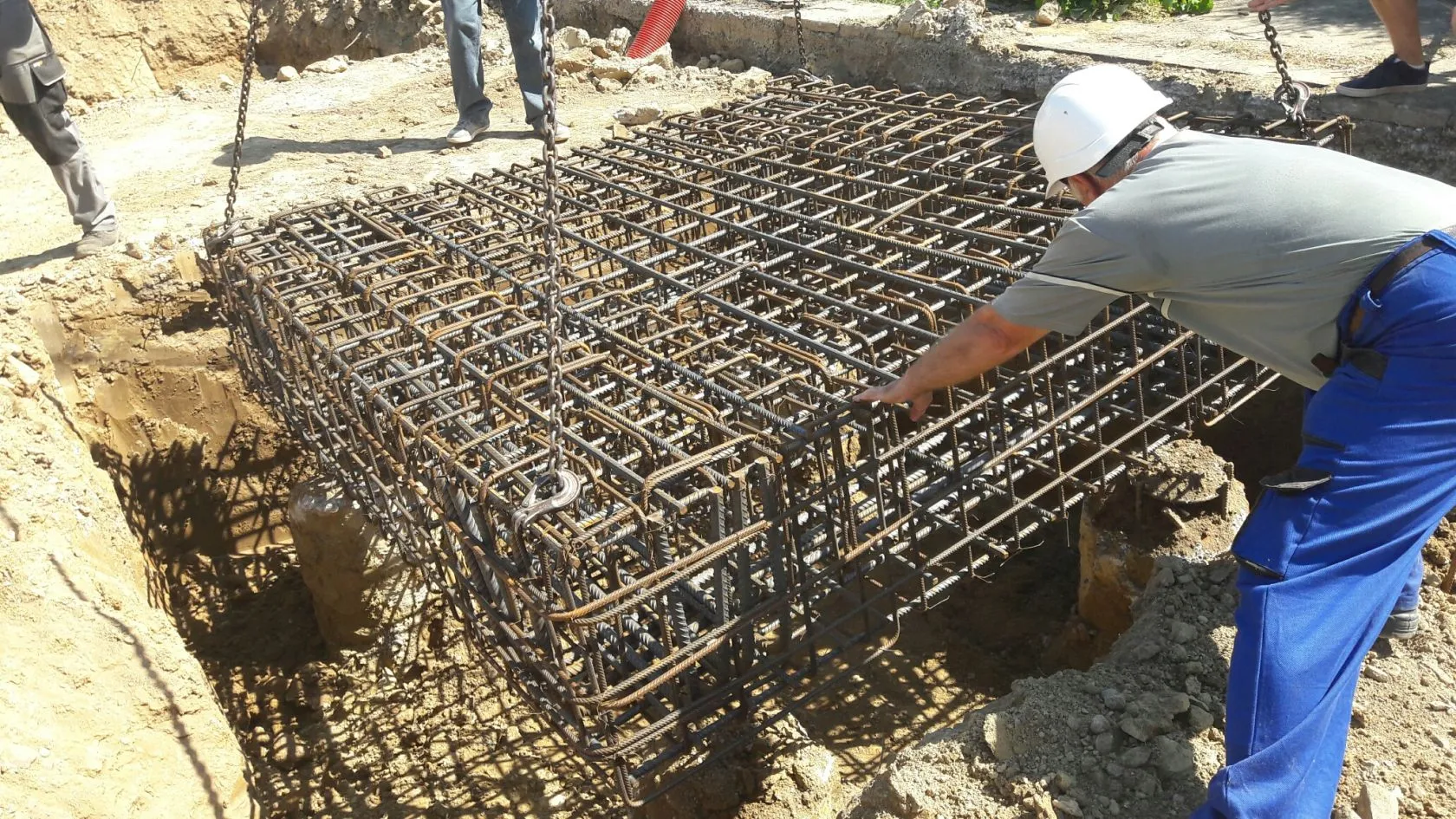

The foundation works had to take into account the fact that the site was formerly a brickworks pit with backfill and loose soil, and therefore the works were carried out using a rarely used method called soil displacement deep piling (FDP piling method). This involved drilling 8.5 m deep boreholes with a diameter of 60 cm at 400 locations using a drill bit specially developed for this technology, so that the piles were driven laterally while the drill bit was retracted and concrete was pushed into the borehole through the drill stem, thus displacing the soil laterally, with little soil displacement. The reinforcing steel reinforcement was placed in the holes after the concrete had been poured.

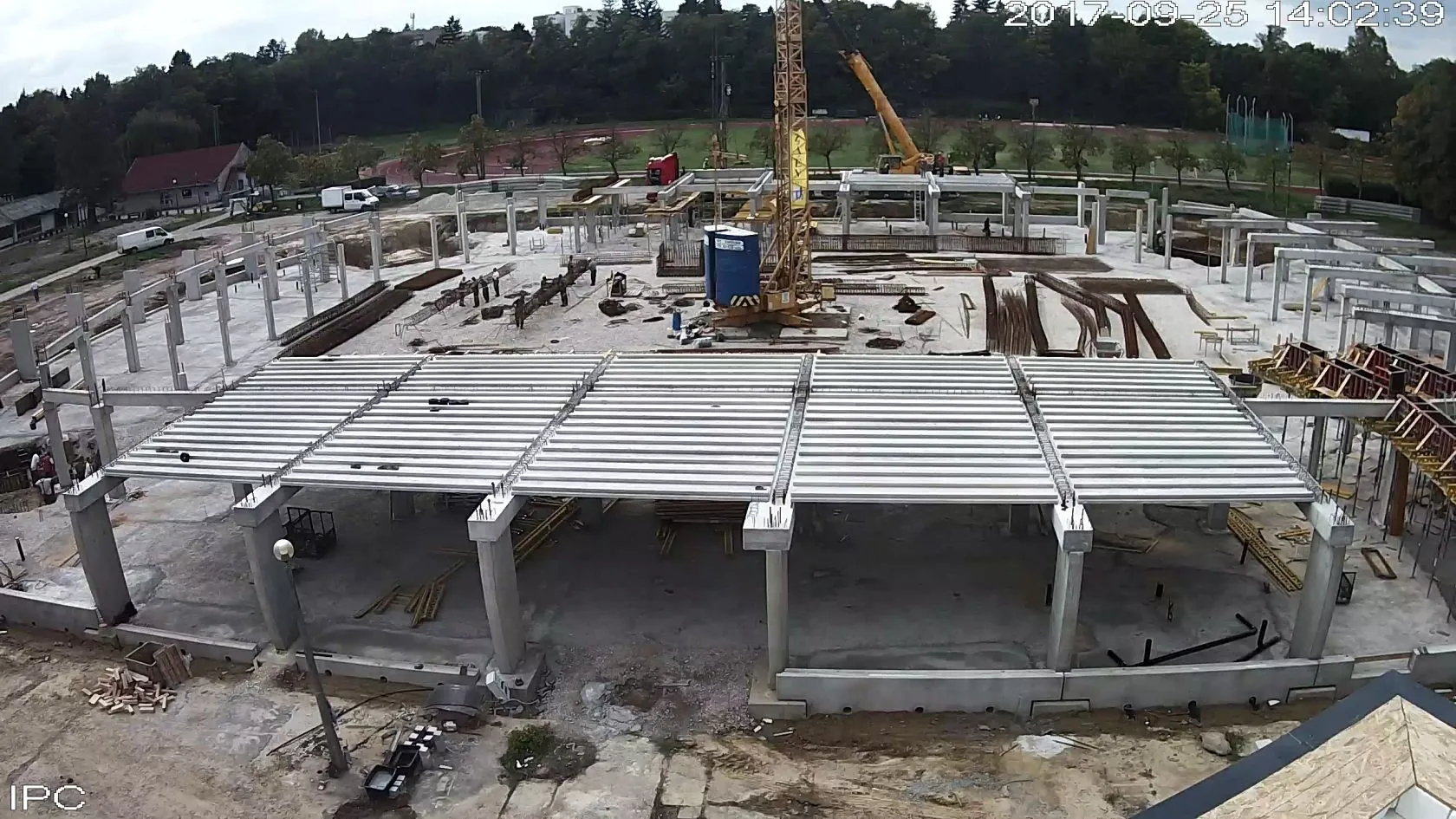

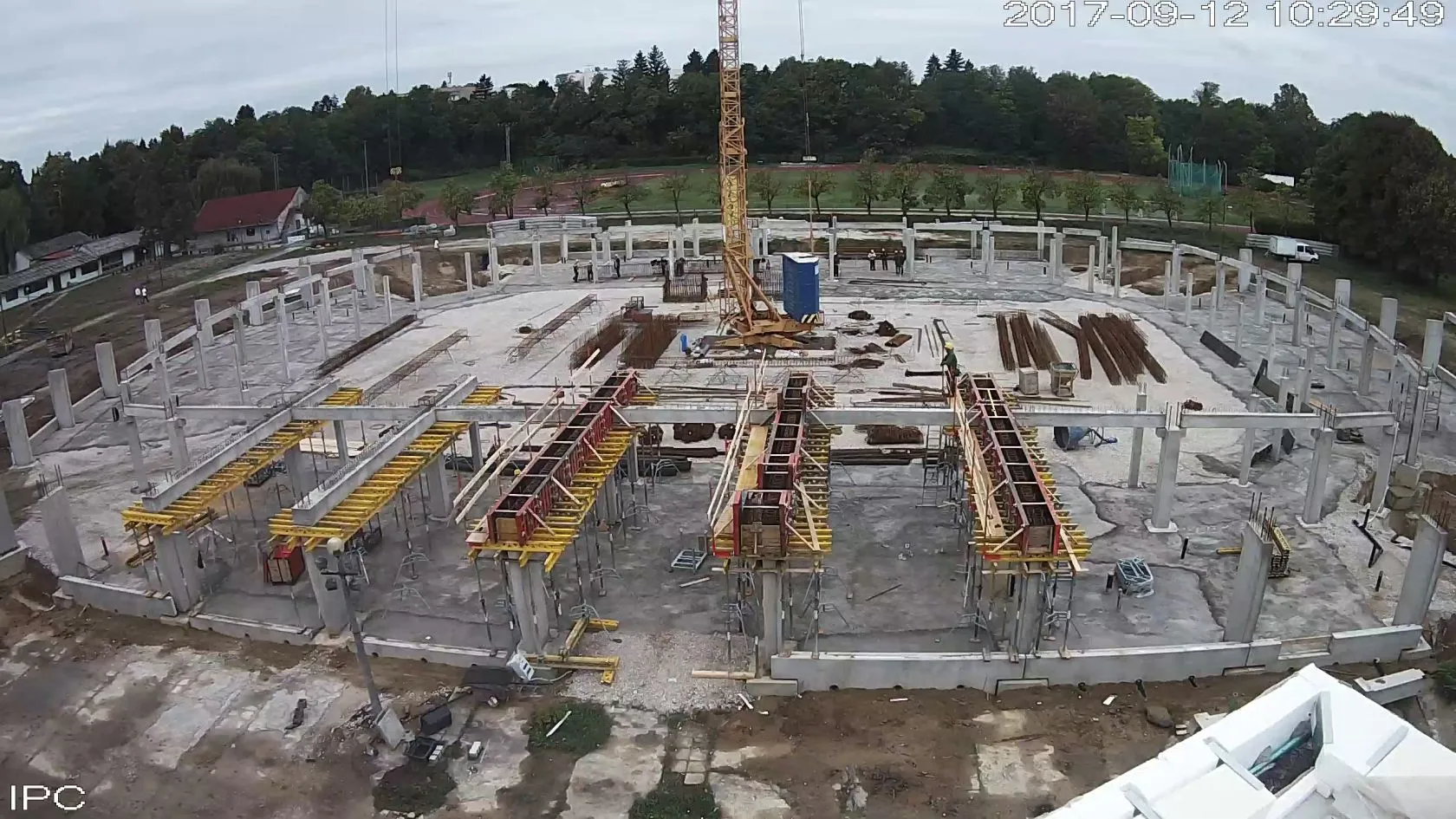

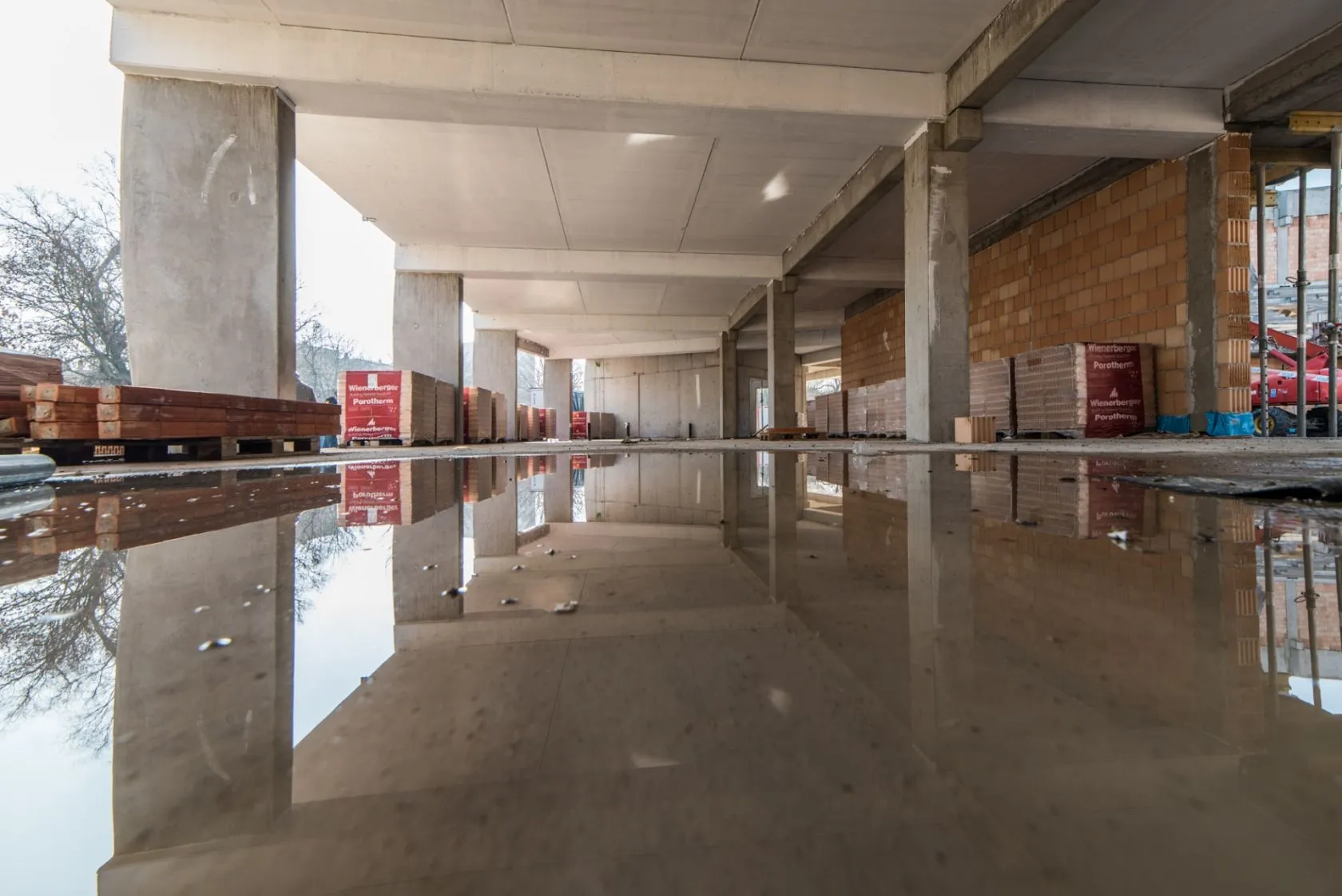

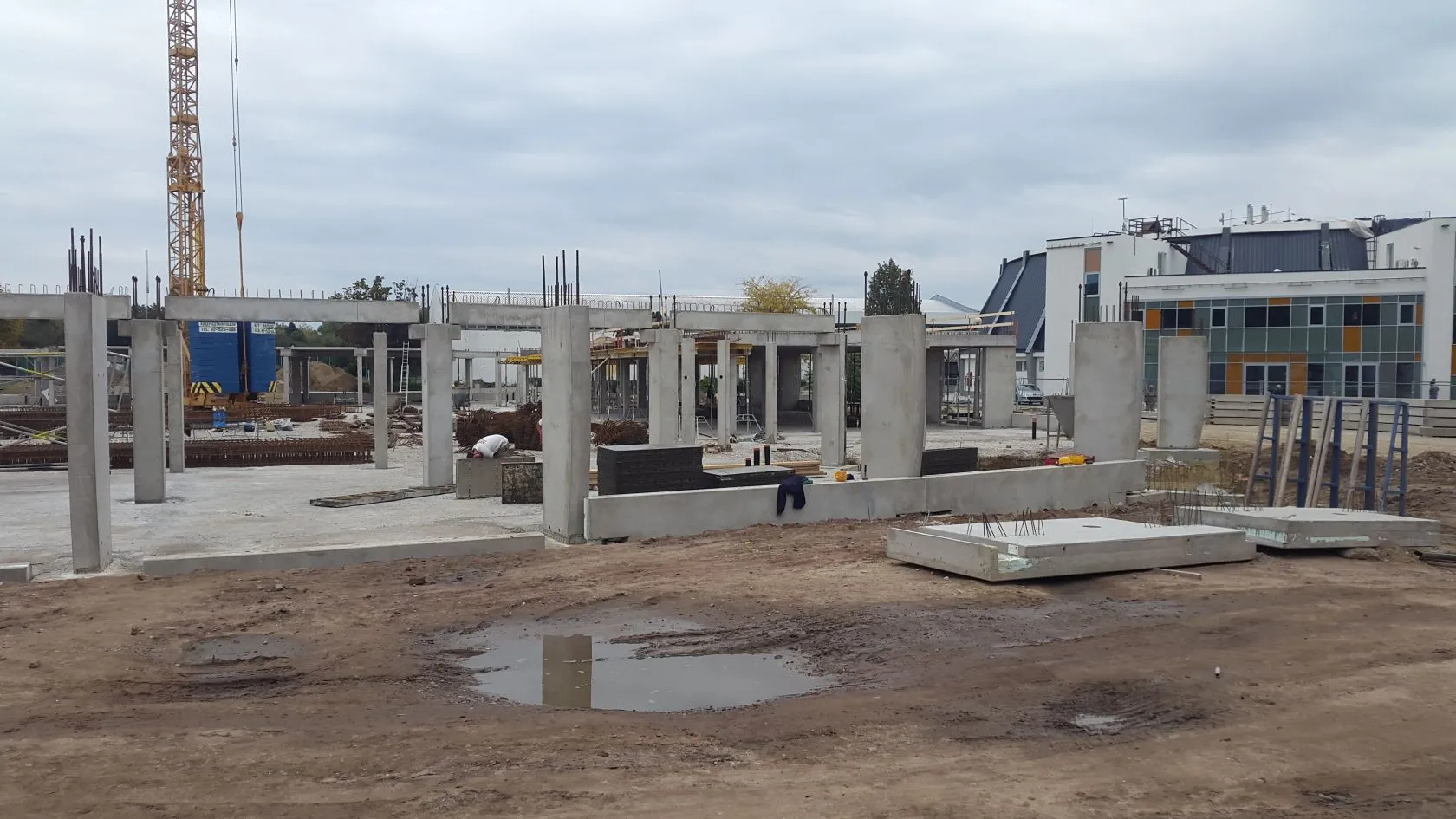

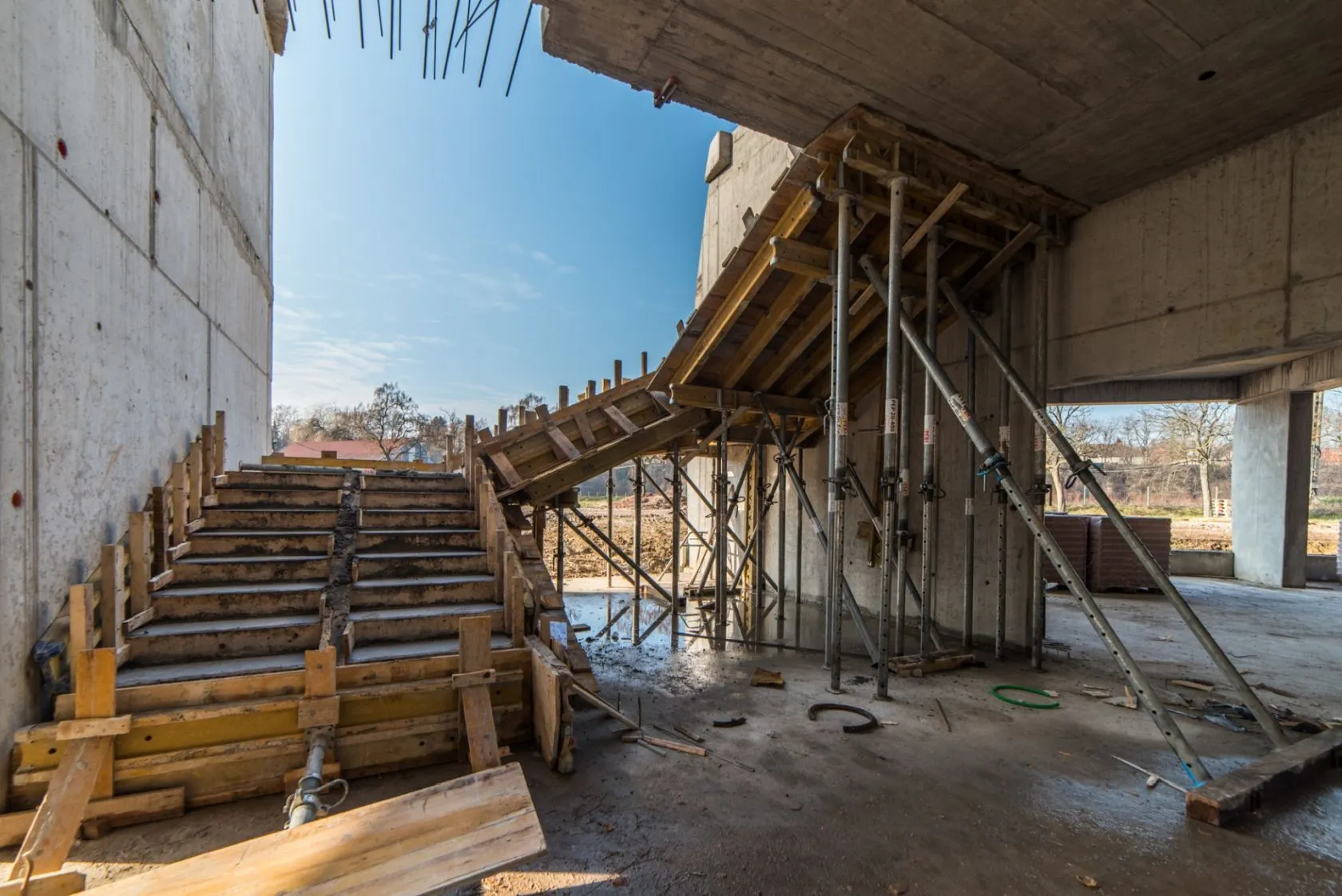

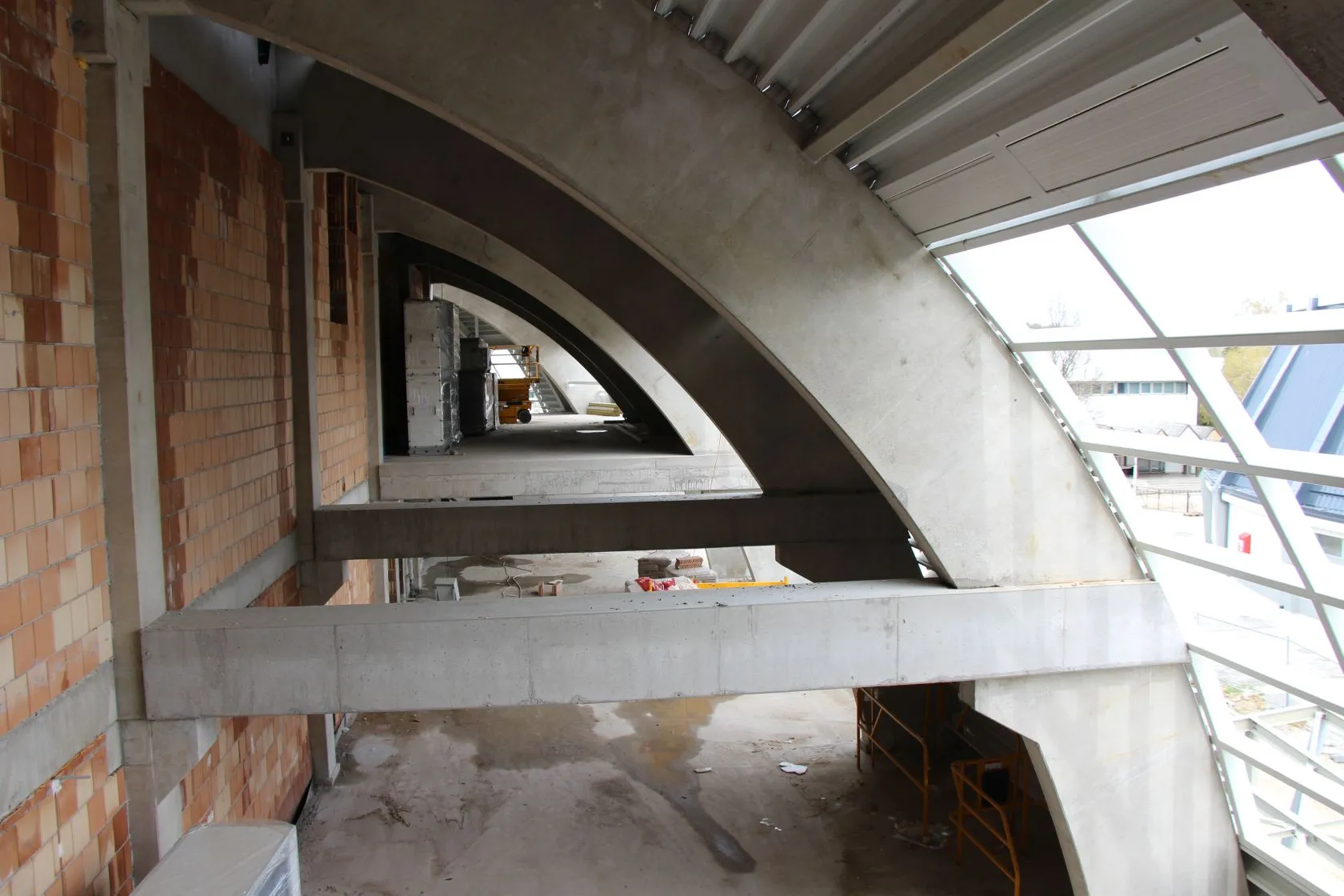

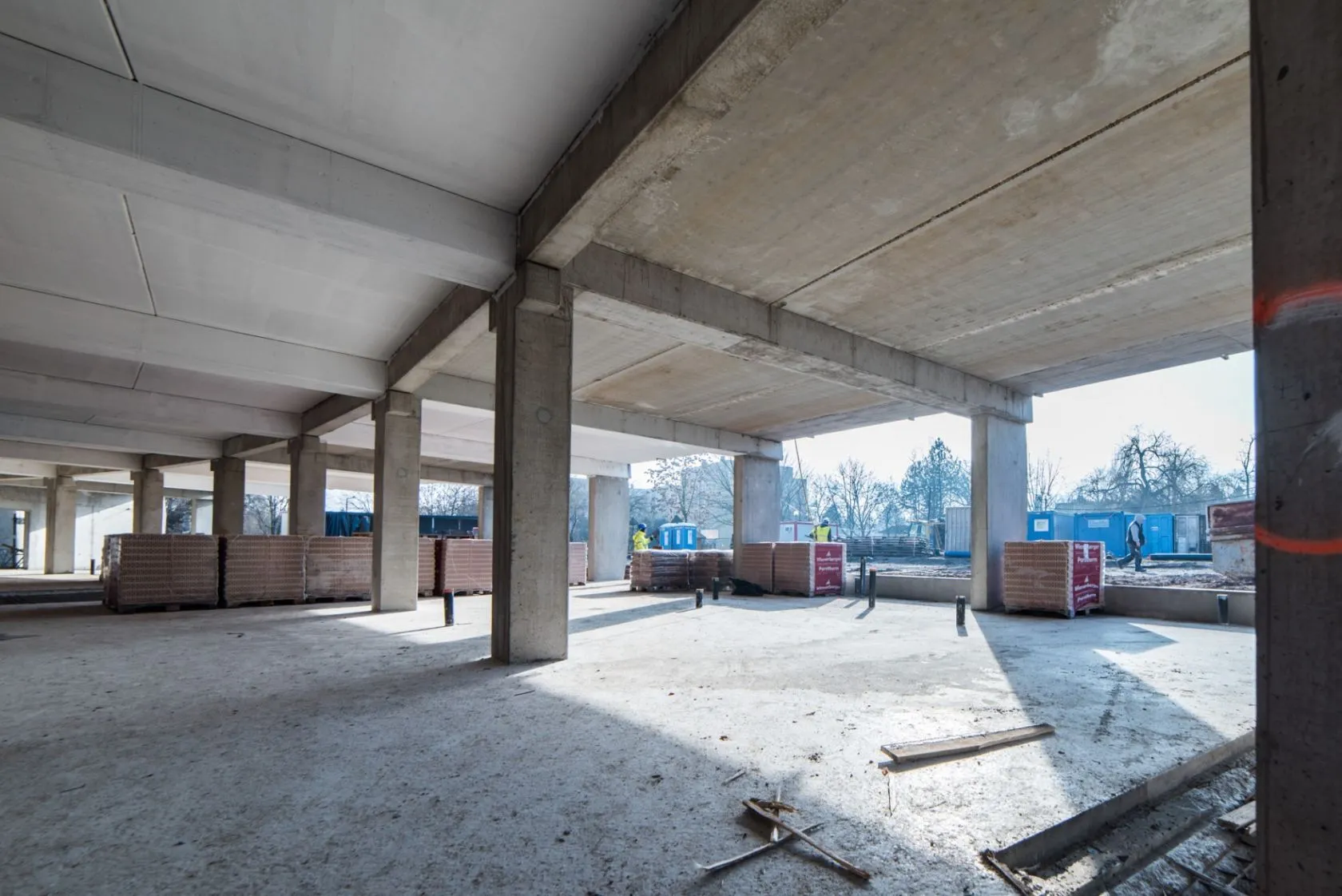

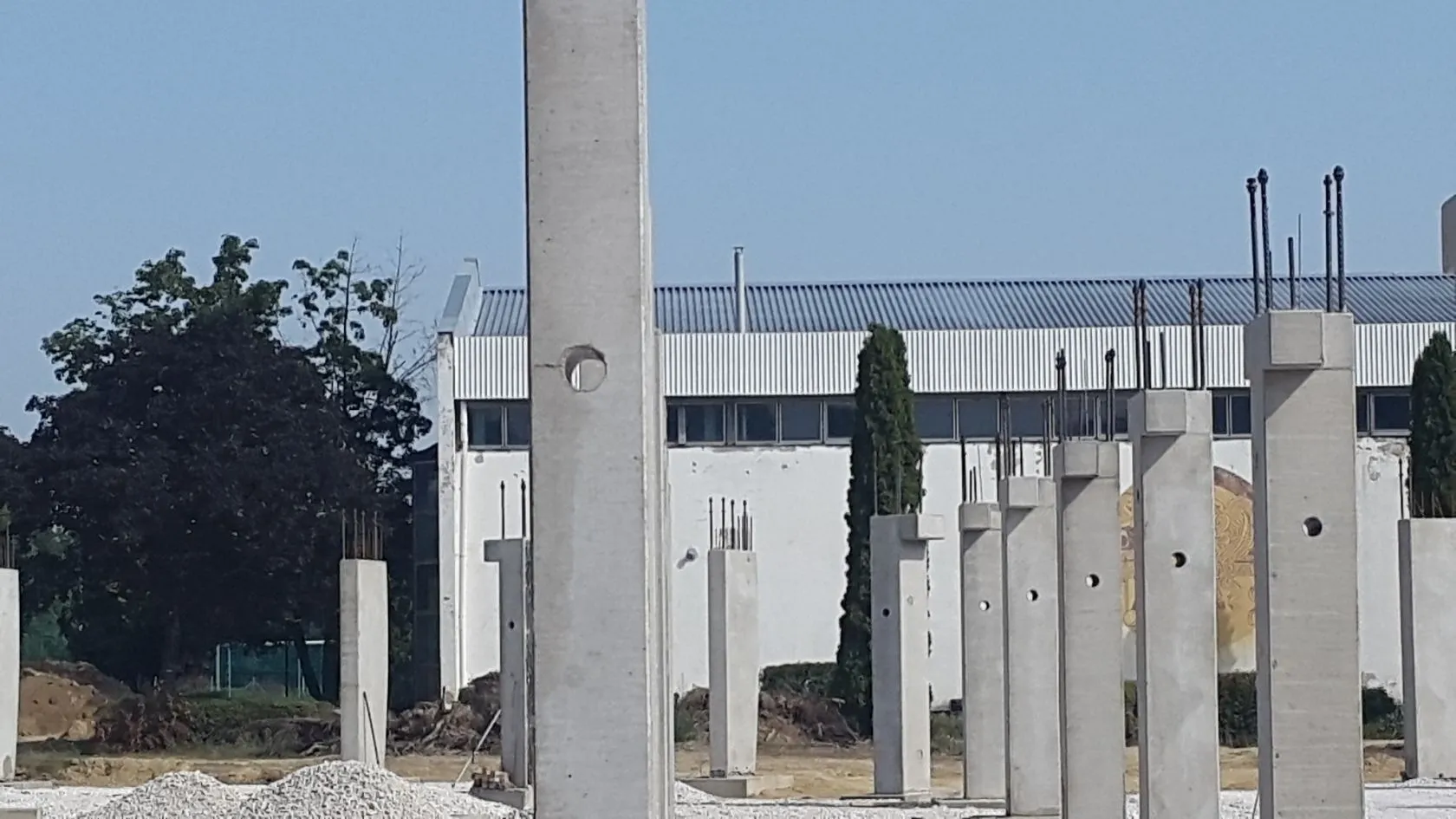

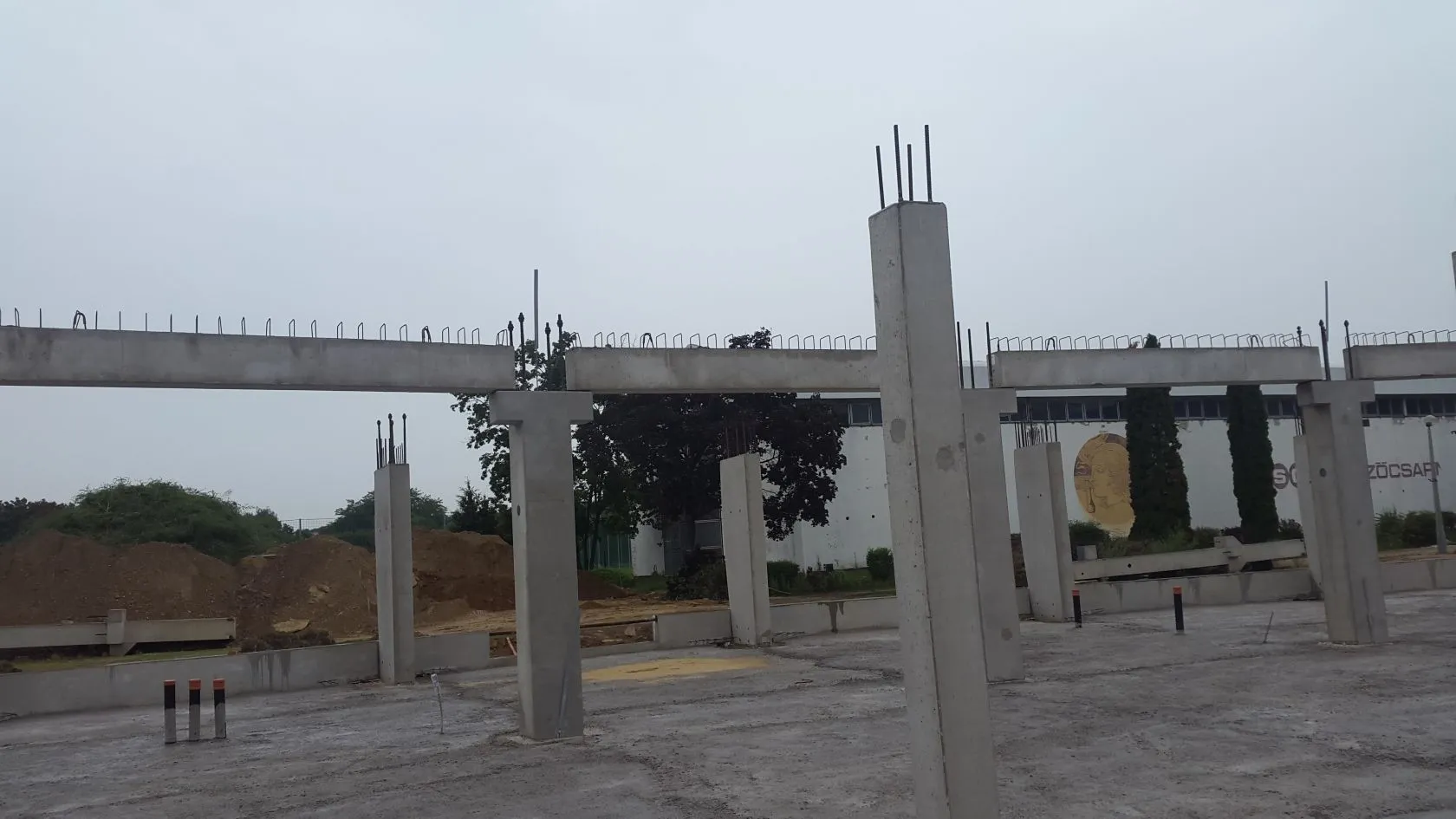

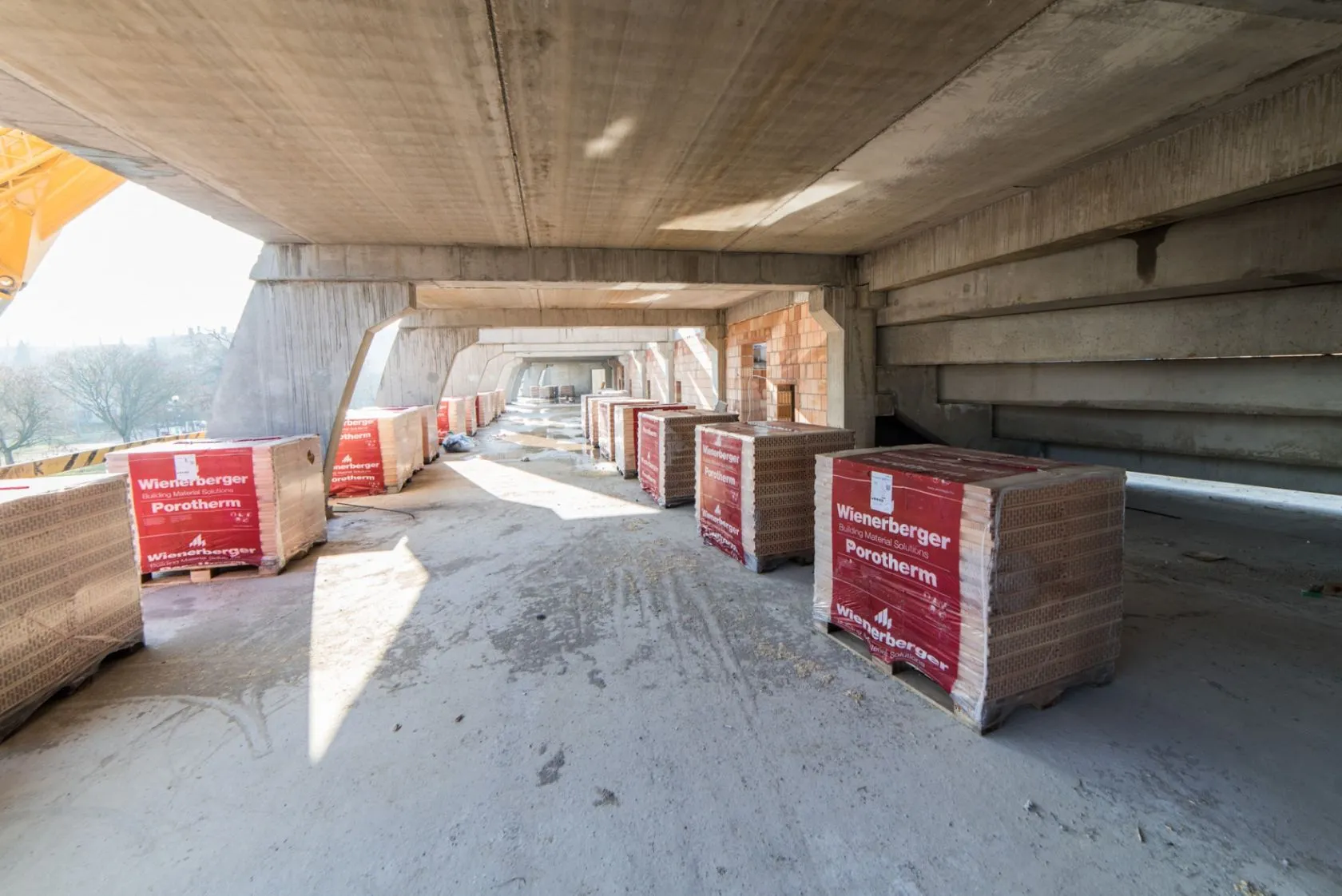

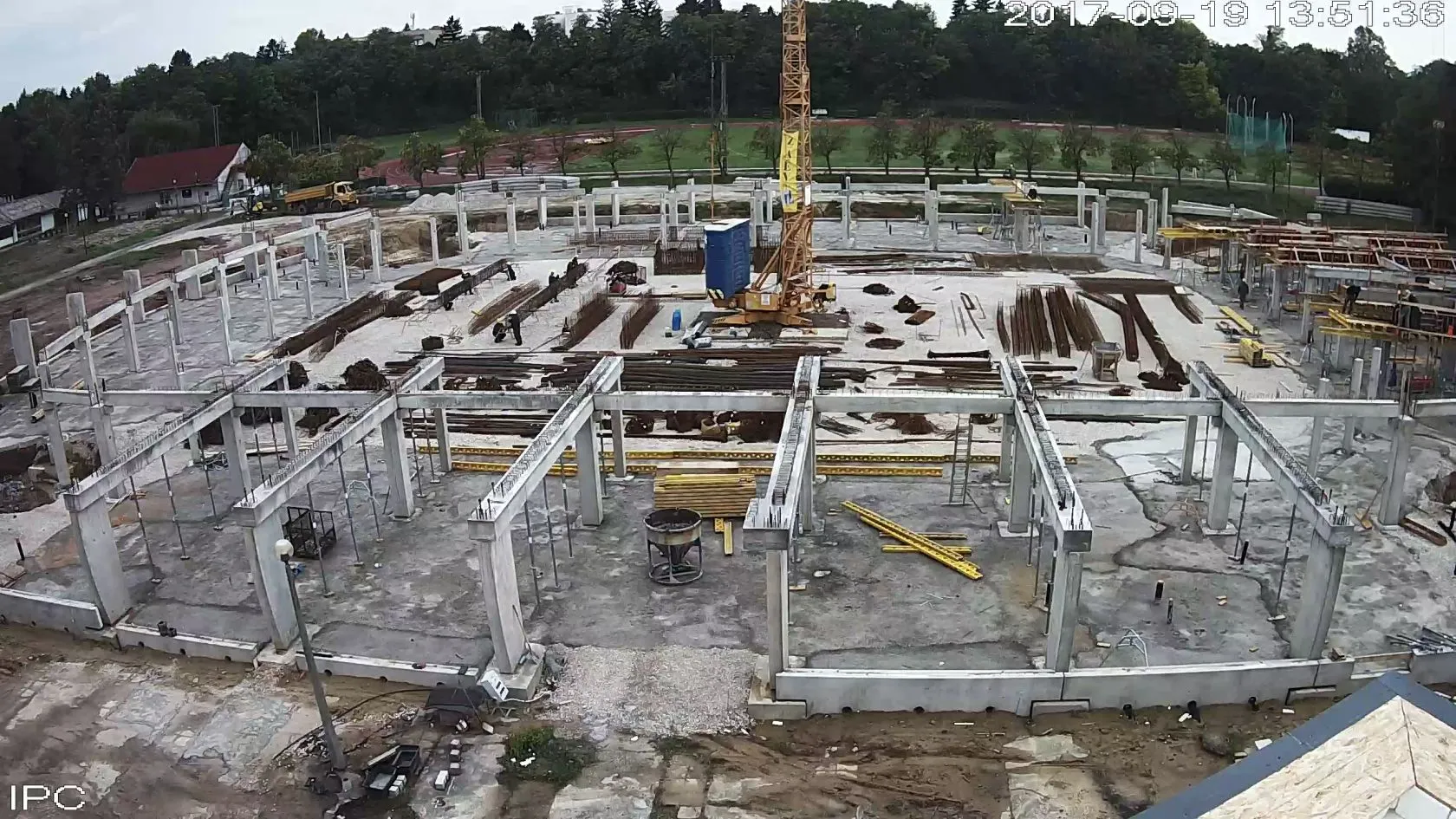

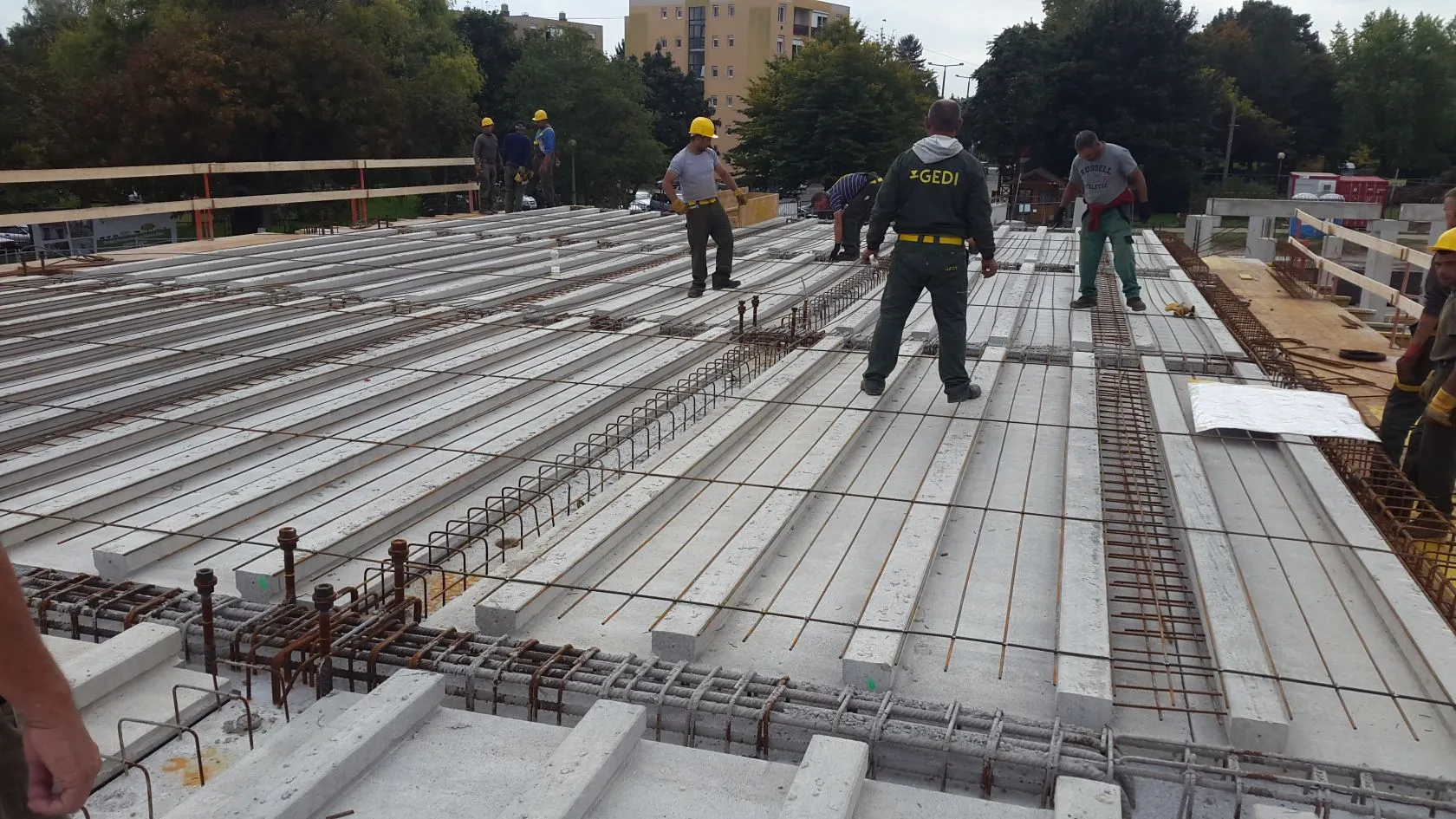

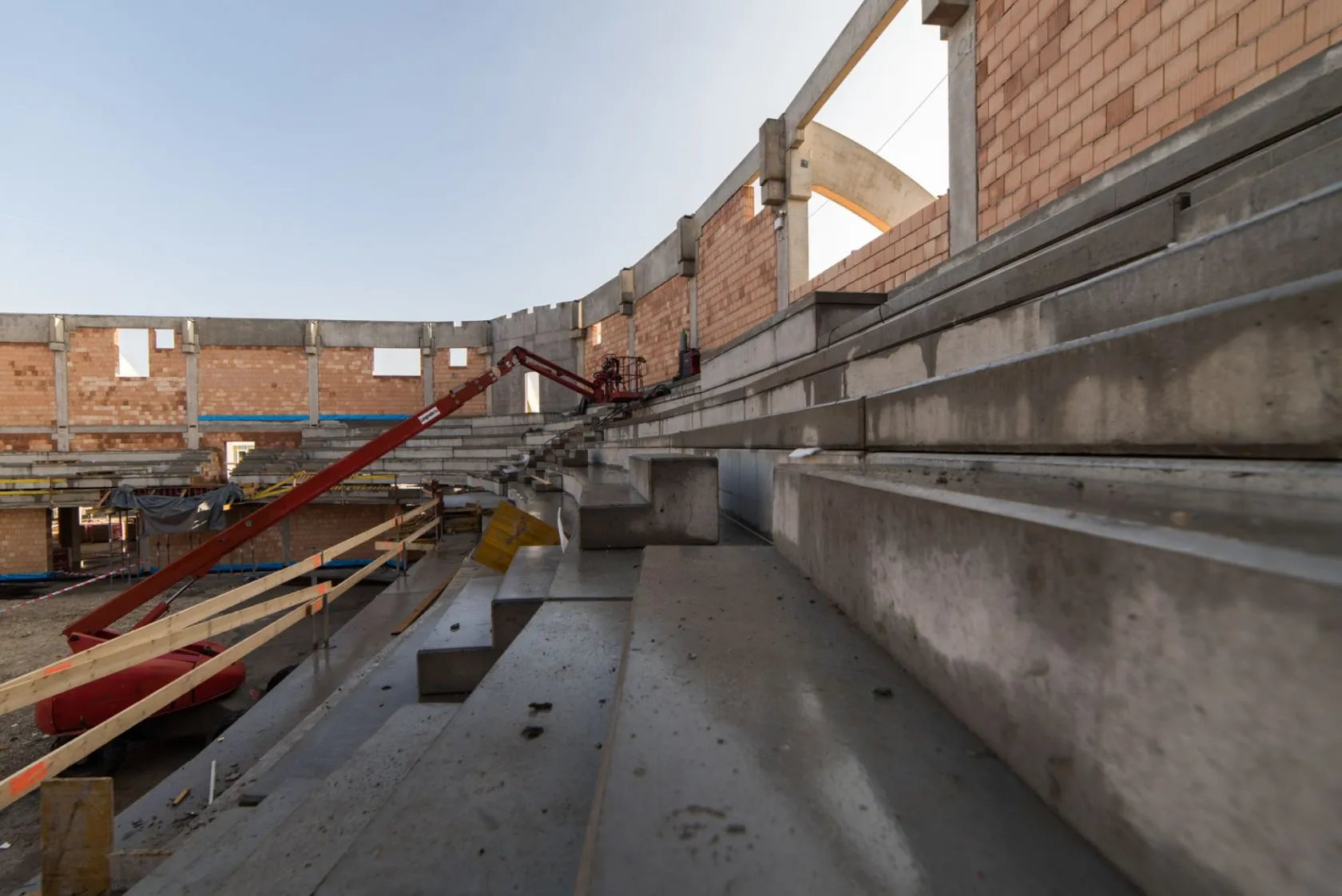

The supporting structure of the hall was largely made of precast reinforced concrete elements, supplemented by monolithic sections. The main supporting pillars are of curved design and precast.

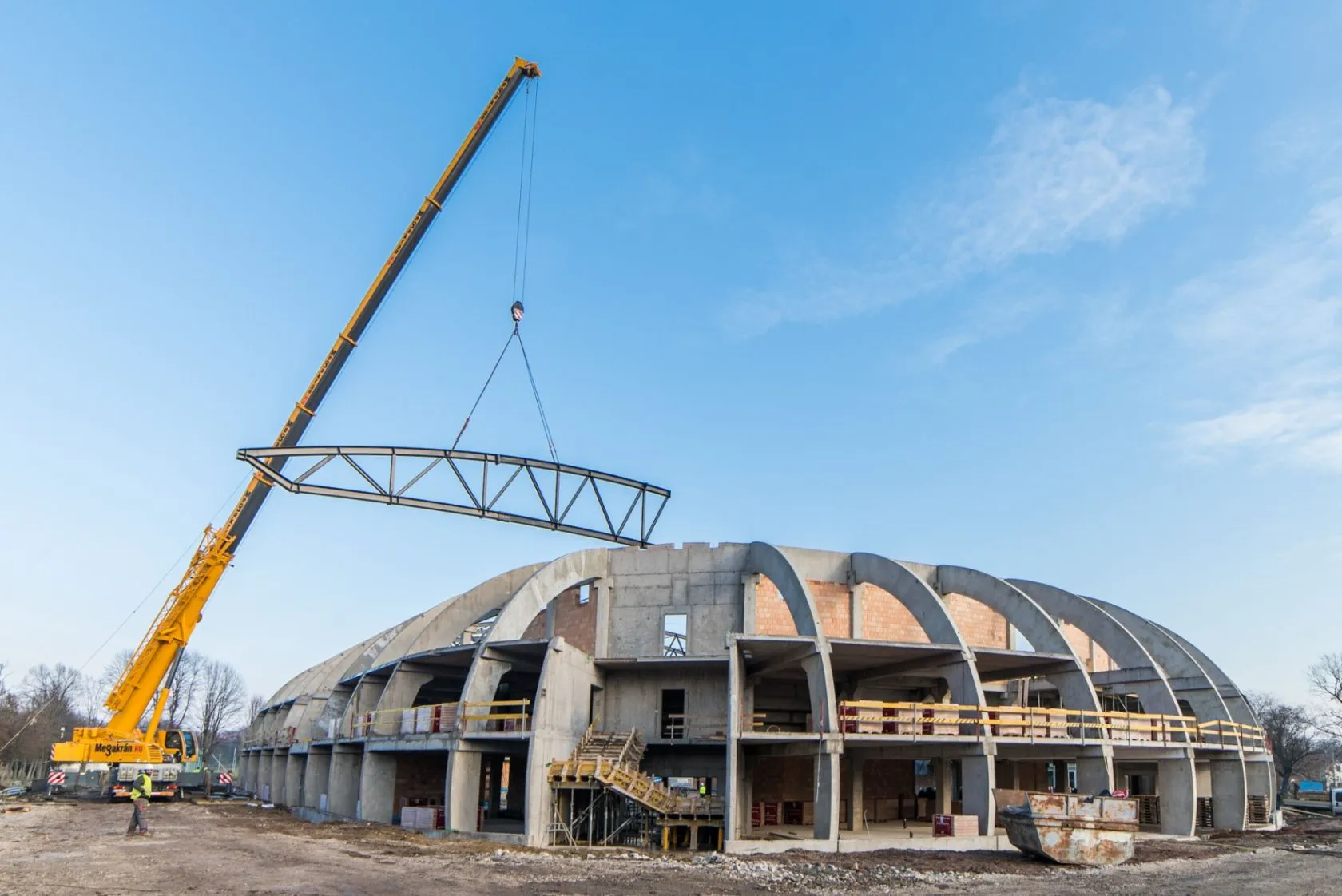

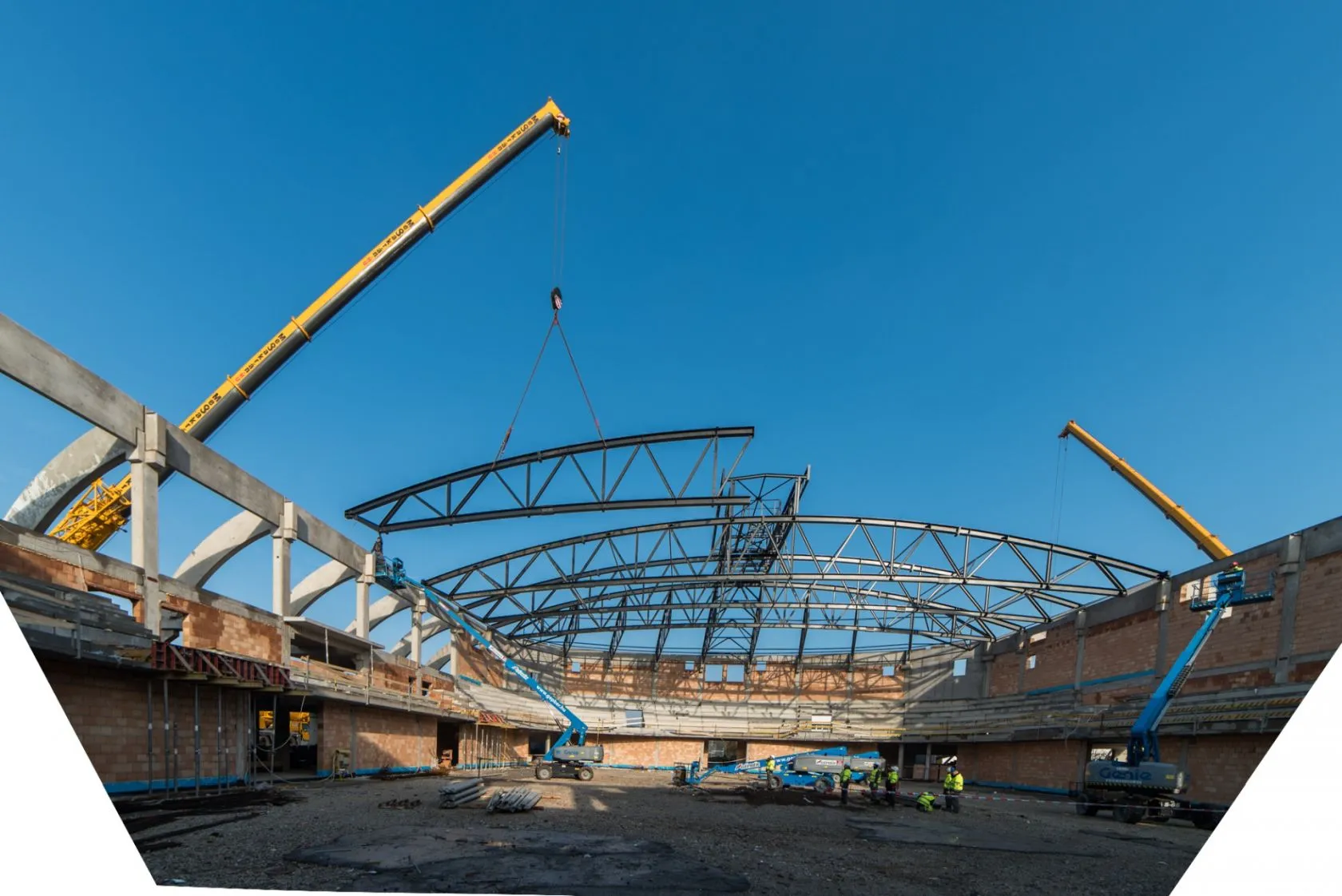

The steel lattice roof structure, weighing 160 tonnes and spanning a distance of 46 metres, is connected by special bolts weighing approximately one tonne in total.

Videos of the construction:
Foundation works
Reinforced concrete superstructure
Steel roof structure

More interesting facts:
About structural solutions in the trade magazine Betonújság

GENERAL DESIGNER, ARCHITECTURE
Arker Stúdió Kft.
